Wedge Wire Screens for Filtration & Separation – Durable & Custom-Made
Wedge wire screen, also known as Johnson screen or profile screen, is a precision filtration component made by welding V-shaped wedge wires onto support rods. With a filtering accuracy ranging from 15 to 800 microns, it is commonly used to manufacture filter plates, filter baskets, and slot tubes. These screens are known for their high strength, hardness, wear and corrosion resistance, uniform slot openings, and excellent seepage performance. They are also easy to clean, resistant to clogging, and suitable for both backwashing and high-pressure cleaning environments.
In industries where precision filtration and durability are critical, wedge wire screens from Ambani Metals stand out as a trusted choice. As a reputed manufacturer and supplier, we specialize in high-performance screen elements designed for efficient separation and filtering across various sectors.
As a reputed wedge wire screen supplier, Ambani Metals provides screens known for their high strength, hardness, wear resistance, corrosion resistance, and uniform slot structure. These features ensure excellent seepage, easy cleaning, and resistance to clogging or backwashing, making them suitable for demanding filtration environments.

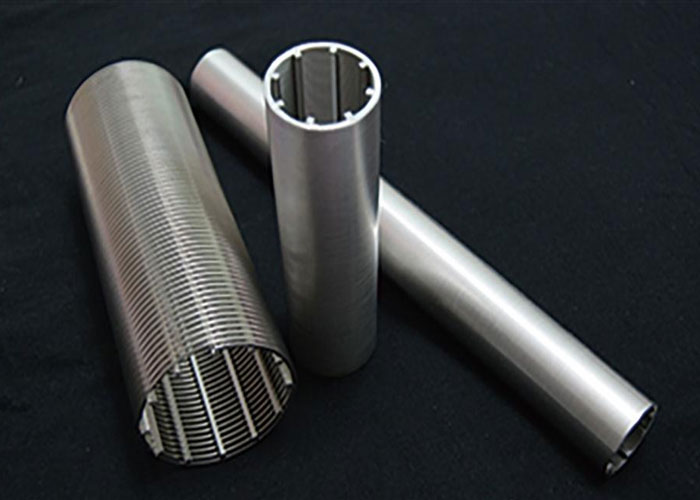

The wedge wire screen tube, also referred to as a round slot tube, is a popular option made from stainless steel due to its superior chemical stability and corrosion resistance. It comprises spirally wound surface profiles welded onto support profiles, ensuring high structural integrity and performance. Manufactured on automated machines, these tubes are available in both standard and precision variants, with the latter used in high-accuracy filtration systems where tighter tolerances are required.
Ambani Metals offers a variety of wedge wire screen types, including economical continuous-slot designs for general use and perfectly round types for high-precision applications. Whether used for dehydration, desliming, or solid-liquid separation, wedge wire screens from Ambani Metals provide excellent load-bearing capacity, rigidity, and versatility in design.
Each screen is custom-manufactured to fit specific equipment and filtration requirements, with a range of aperture sizes and profiles to reduce pegging and ensure efficient operation, even in the most difficult processing conditions.
Properties of Wedge Wire Screen
- High Strength & Durability : Designed to withstand high pressure and heavy loads without deformation.
- Precise Slot Openings : Uniform slot spacing ensures accurate filtration and efficient flow.
- Corrosion & Wear Resistance : Made from stainless steel or other corrosion-resistant alloys for long service life.
- Excellent Seepage Performance : V-shaped wires allow smooth fluid flow while minimizing clogging.
- Structural Stability : Rigid construction resists bending or collapse under extreme operating conditions.
Advantages of Wedge Wire Screen
- Uniform Slot Openings : Ensures precise filtration and effective retention of media.
- Large Flow Capacity : Offers greater circulation area compared to traditional screens.
- Anti-Clogging Design : Smooth wedge-shaped gaps prevent blockages and allow easy backwashing.
- High Mechanical Strength : Withstands high pressure drops without deformation.
- Flexible Flow Direction : Adapts to various flow configurations with strong pressure resistance.
Types of Wedge Wire Screen
- Wedge Wire Screen Tube (Round Slot Tube) : A cylindrical screen made by spirally welding V-shaped wires onto support rods, offering precise filtration. Commonly used in water wells, oil processing, and various industrial filtration systems.
- Wedge Wire Screen Panel : Flat, welded panels designed for efficient dewatering, separation, and filtration. Widely used in mining, food processing, and wastewater treatment applications.
- Wedge Wire Filter Basket : Custom-engineered basket screens built for effective solid-liquid separation. Ideal for use in centrifugal filters, industrial strainers, and pressure vessel systems.
- Wedge Wire Screen Nozzle : Compact, nozzle-shaped screens mounted on filter beds or tanks for precise flow control. Commonly used in ion exchange units and water treatment systems.
- Wedge Wire Resin Trap Screen : Trap-style screen installed in pipelines to capture and retain resin particles. Ideal for preventing resin loss in chemical processing and water softening systems.
- Wedge Wire Lateral System : A system of multiple screen laterals connected to a central header pipe, ensuring uniform flow. Commonly used in underdrain systems for efficient water distribution and collection.
- Cylindrical & Conical Screens : Round or cone-shaped wedge wire screens designed for continuous flow operations. Widely used in the pulp & paper, brewing, and sugar processing industries.
Applications of Wedge Wire Screen
- Water & Wastewater Treatment : Used for filtration, screening, and underdrain systems in treatment plants.
- Oil & Gas Industry : Employed in sand control screens, mud filtration, and well screens.
- Food & Beverage Processing : Applied in juice filtration, brewing, starch separation, and sugar refining.
- Mining & Mineral Processing : Used in dewatering, sizing, and solid-liquid separation systems.
- Pulp & Paper Industry : Utilized in fiber separation, water filtration, and paper pulp refining.
- Pharmaceutical & Chemical Industries : Essential for resin traps, catalyst recovery, and chemical filtration.
- Power Plants : Used in cooling water intakes, fuel filtration, and ash separation.
- Construction & Architecture : Applied as architectural panels and decorative grilles due to durability and aesthetics.
FAQs
A wedge wire screen is a filtration and separation component made by welding V-shaped (wedge) wires onto support rods, forming precise slot openings for accurate and durable screening.
Most wedge wire screens are made from stainless steel grades such as SUS304, SUS316, or 316L, offering excellent corrosion, heat, and wear resistance.
Wedge wire screens are available in slot sizes typically ranging from 15 microns to 800 microns, depending on the filtration requirements.
Wedge wire screens provide greater strength, higher precision, anti-clogging performance, and longer lifespan compared to traditional mesh or perforated sheets.
