Ceramic Structured Packing for Distillation Columns
Ambani Metals is a leading manufacturer and supplier of Ceramic Structured Packing in India, providing high-performance solutions for distillation, absorption, and purification processes across chemical, petrochemical, and metallurgical industries.
What is Ceramic Structured Packing?

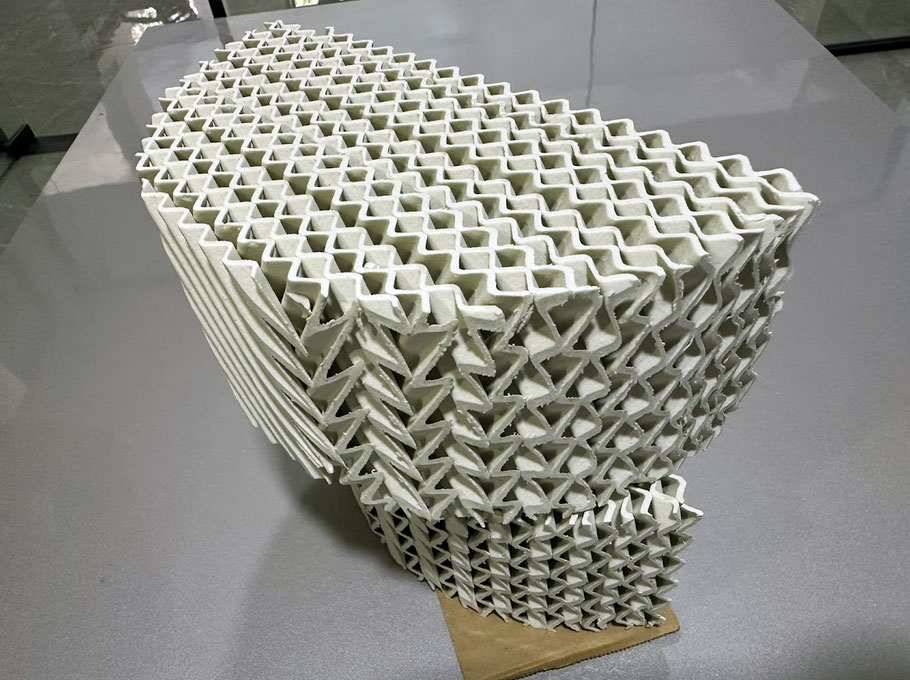

Ceramic Structured Packing consists of precision-engineered corrugated sheets arranged in a geometric pattern to form cylindrical units. These structured units create a large surface area and uniform fluid distribution, resulting in significantly higher separation efficiency compared to random or loose packing.
With its unique ceramic structure, this packing:
- Ensures low pressure drop for energy-efficient operations
- Handles high liquid flow rates with maximum efficiency
- Offers flexible operation for varying process conditions
- Minimizes liquid stagnation, reducing the risk of overheating, polymerization, and coking
Advantages of Ceramic Structured Packing
- High separation efficiency – several times higher than loose packing
- Large specific surface area – enhances mass transfer
- Excellent chemical stability – resistant to acids, alkalis, and corrosive gases
- High temperature and pressure resistance – outperforms metal packing
- Good hydrophilic properties – promotes uniform liquid flow
- Durable and long-lasting – reduces maintenance and replacement costs
Applications of Ceramic Structured Packing
AMB CERA Ceramic Structured Packing is widely used in towers and columns in industries such as chemical, fertilizer, metallurgical, and petrochemical:
- Chemical industry – Distillation of halogenated organic compounds, sulfuric acid absorption, nitric acid concentration
- Fertilizer plants – Gas purification and drying towers
- Metallurgical processes – Oxygen production towers
- Petrochemical industry – Cooling, washing, and regeneration towers
- Environmental engineering – Gas scrubbing and air pollution control
Product Features
- Made from high-quality chemical porcelain clay
- Corrugated sheets arranged at 60° or 45° angles for optimized mass transfer
- Supplied as round packs or modular segments for easy installation in large-diameter columns
- Customizable sizes available to meet specific process requirements
- Suitable as a carrier for various catalysts due to high strength and chemical stability
Why Choose Ambani Metals?
- In-house manufacturing ensures strict quality control
- Expertise in designing structured packing for high-efficiency distillation and absorption
- Reliable supplier with timely delivery across India
- Provides custom solutions to match process and tower requirements
Chemical Analysis of Ceramic Structured Packing
| Composition | Value |
|---|---|
| SiO2 | ≥72% |
| Fe2O3 | ≤0.5% |
| CaO | ≤1.0% |
| Al2O3 | ≥23% |
| MgO | ≤1.0% |
| Other | 2% |
Physical Property of Ceramic Structured Packing
| Index | Value |
|---|---|
| Specific gravity(g/cm3) | 2.5 |
| Water absorption (wt%) | ≤0.5% |
| Acid resistance (wt%) | ≥99.5 |
| Loss in burn (wt%) | ≤5.0 |
| Max. operating temp.(?) | 800 |
| Crush strength (Mpa) | ≥130 |
| Moh's hardness(Scale) | ≥7 |
Chemical Analysis of Ceramic Structured Packing
| Spec. | Specific surface (m2/m3) | Bulk density (kg/ m3) | Void ratio (%) | Obl. angle | Pressure drop (mm Hg/m) | Theo. plate (m-1) | Hydraulic diameter (mm) | Liquid load (m3/m2h) | Max. factor m/s (Kg/m3)-1 |
|---|---|---|---|---|---|---|---|---|---|
| 125Y | 125 | 320 | 90 | 45 | 1.8 | 1.8 | 28 | 0.2-100 | 3.0 |
| 250Y | 250 | 420 | 80 | 45 | 2 | 2.5 | 12 | 0.2-100 | 2.6 |
| 350Y | 350 | 470 | 78 | 45 | 2.5 | 2.8 | 10 | 0.2-100 | 2.5 |
| 450Y | 450 | 520 | 72 | 45 | 4 | 4 | 7 | 0.2-100 | 1.8 |
| 550Y | 550 | 620 | 74 | 45 | 5.5 | 5-6 | 6 | 0.18-100 | 1.4 |
| 700Y | 700 | 650 | 72 | 45 | 6 | 7 | 5 | 0.15-100 | 1.3 |
Global Export of Ceramic Structured Packing
Ambani Metals is a trusted manufacturer and global exporter of Ceramic Structured Packing, delivering high-performance solutions for distillation, absorption, and chemical processing towers worldwide. With years of expertise in designing and supplying premium ceramic structured packing, we serve industries that demand efficiency, durability, and reliability in mass transfer applications.
Our Global Reach
We proudly export our high-quality ceramic structured packing to key markets across the globe, including:
- Middle East: Bahrain, Egypt, Israel, Jordan, Kuwait, Lebanon, Oman, Qatar, Saudi Arabia, United Arab Emirates
- Africa: Morocco, Tunisia, Ghana, Nigeria, Senegal, Kenya, Mauritius, Rwanda, Tanzania, Uganda, Zambia, Botswana, Eswatini, Lesotho, Namibia, South Africa
- Europe: Germany, United Kingdom, France, Italy, Netherlands, Spain, Belgium, Poland, Czech Republic, Sweden, Denmark, Finland, Portugal, Hungary, Slovakia, Slovenia, Romania, Austria
- Asia: Japan, South Korea, Singapore, Malaysia, Vietnam, Indonesia, Thailand, Philippines, Bangladesh, Sri Lanka, Nepal
- Pan-Pacific Countries: United States, Canada, Mexico, Brazil, Chile, Colombia, Peru, Panama, Australia, New Zealand
Why Choose Ambani Metals for Global Export?
- High-Quality Products: Our ceramic structured packing is made from premium chemical porcelain clay, offering superior chemical and thermal resistance compared to metal packing.
- Customizable Solutions: We manufacture structured packing in various sizes and modular designs to fit any column or tower requirement.
- Timely Delivery: Efficient logistics and robust supply chain ensure safe and prompt delivery to international clients.
- Trusted by Industries Worldwide: From chemical and fertilizer plants to metallurgical and environmental applications, Ambani Metals’ ceramic structured packing is recognized for reliability and long-lasting performance.
Applications of Our Exported Ceramic Structured Packing
- Distillation towers: Halogenated organic compounds, solvents, and other chemical distillation processes
- Absorption towers: Sulfuric acid, nitric acid, and other industrial gas absorption
- Cooling and washing towers: Efficient liquid-gas contact with minimal pressure drop
- Regeneration and purification towers: High mass transfer efficiency for industrial gas and chemical processing
